靈活可移動的隔音艙，猶如偉大的集裝箱，在限定的尺寸內發揮出強大的空間創(chuàng )造力。外框采用6061氟碳灰加強型鋁材，
墻體為雙層鋁蜂窩板及雙面隔音玻璃，內飾配聚酯纖維吸音板。全鋁的材料設計使其達到防火要求，安全穩定。
阻燃的聚酯纖維吸音板以及尼龍地毯，使其達到聲學環境指標。隔音艙無色差粉末噴涂的表面處理，外框和板材都是鋁材，
除了防火等優點之外，外框和板材可以做到同樣的無色差的表面處理。

工作

會(huì )議

播音

電話

琴房

學習

架子鼓

薩克斯

小提琴

煙室

辦公環境現狀調研

Investigation on the current situation of office environment

超過50%的人在開放式辦公室里很難集中精力 ----研究來源：悉尼大學

Over 50% of people have a hard time concentrating in open-plan offices
-Research source: University of Sydney

在小小的分心之后需要20分鐘才能重新集中注意力 -----資料來源:加州大學

It takes20 minto regain your focus after a small distraction
-Source: University of California

80%的會(huì )議在1-4人之間召開，工作效率高 -----研究來源：Rapal Study, 2018

80% of meetings are held between 1-4 people, which is efficient
-Source: Rapal Study, 2018

在開放式辦公室工作效率會(huì )降低15% -----研究來源：BBC資本

You are 15% less productive working in an open-plan office
-Source: BBC Capital

解決開放式辦公室的噪音及私隱問題

Solve the noise and privacy problems in open offices

時尚外觀點綴辦公環境

Stylish appearance embellishes the office environment

多種可搭配選項滿足個性化需求。顏色、家具、硬件設施

A variety of matching options to meet individual needs. Color, furniture, hardware facilities

比單獨建立辦公室更省時、成本、空間

Save time, cost and space than setting up an office alone

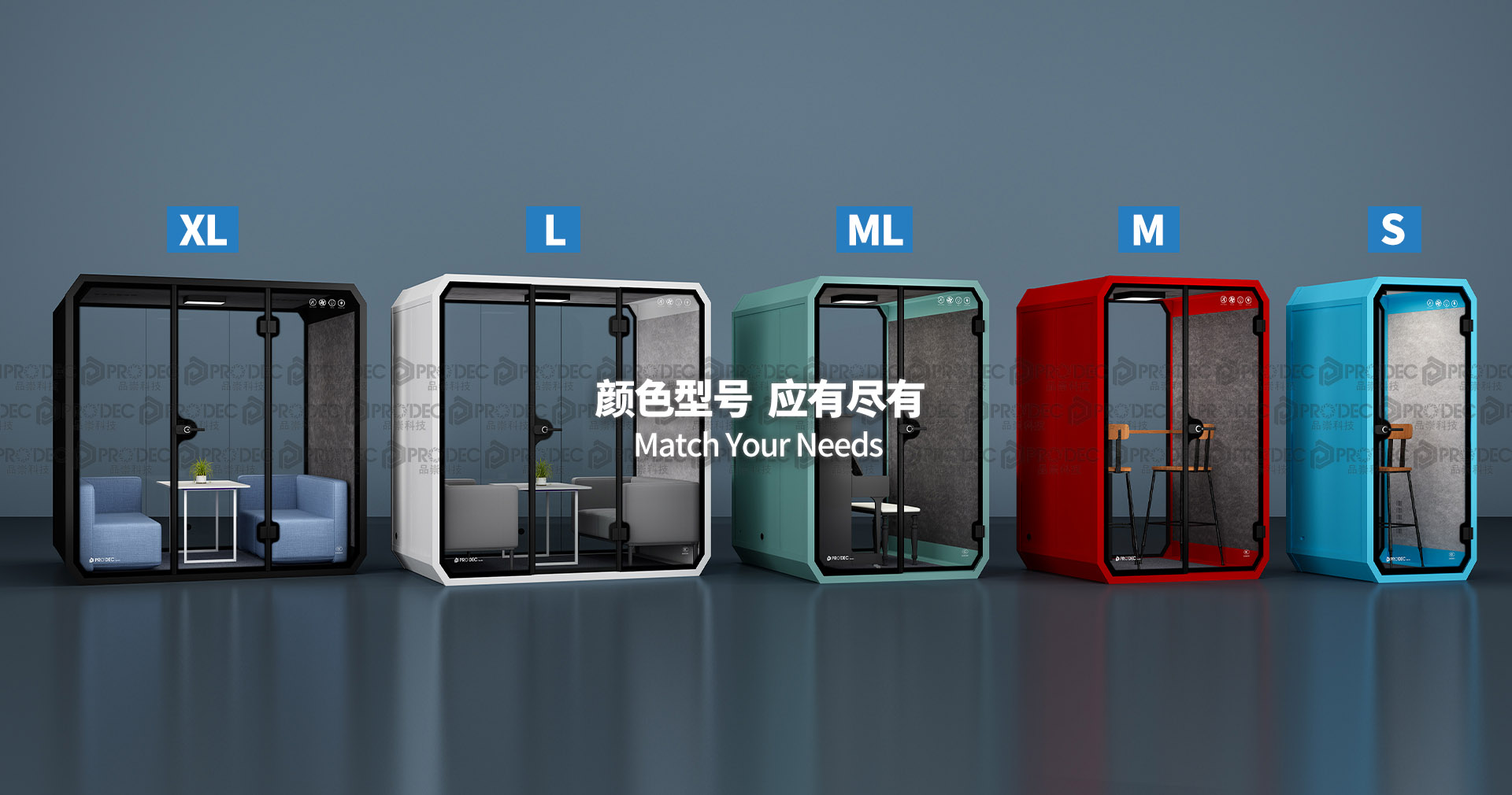

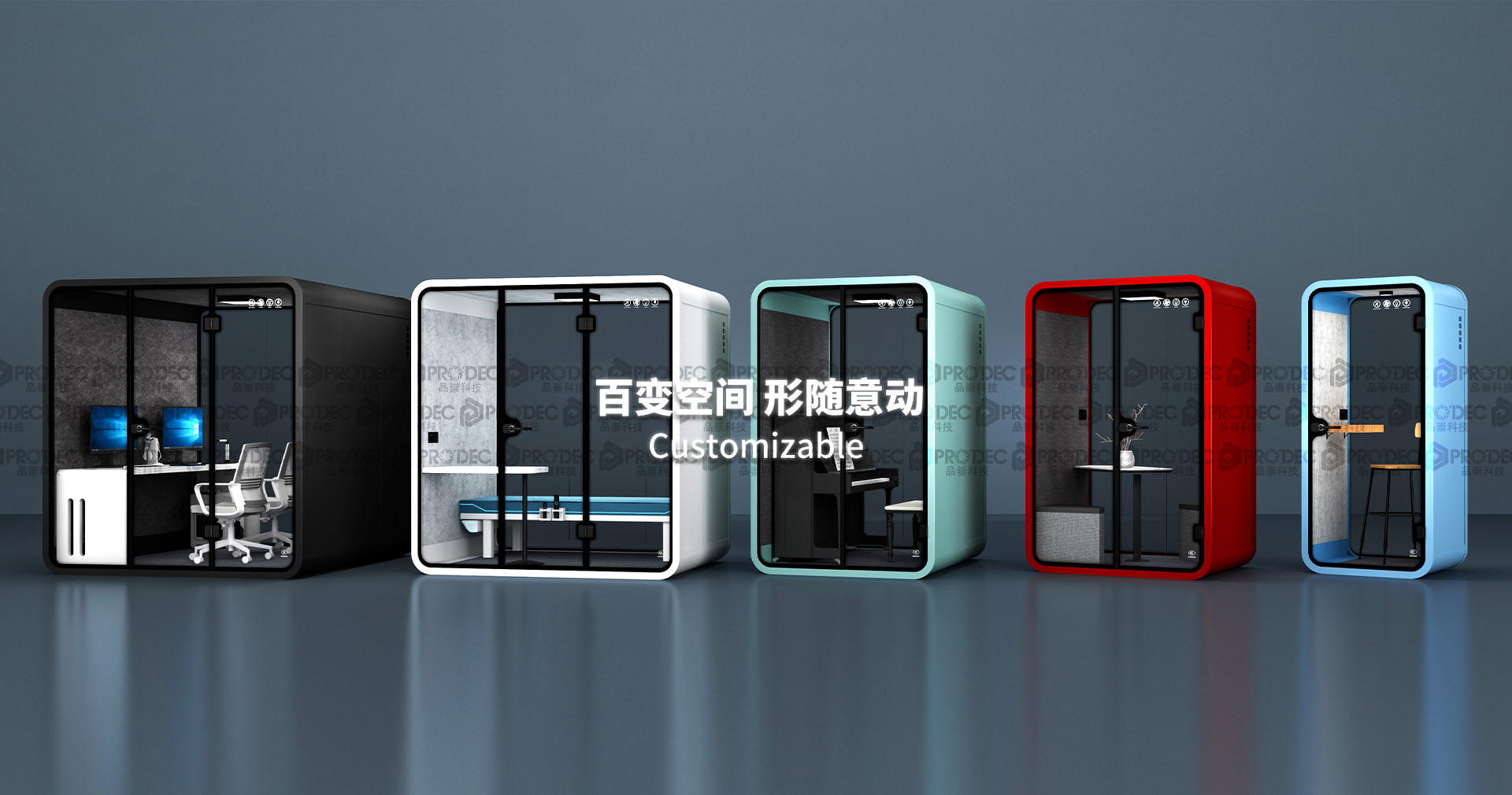

extra large 六人

團隊辦公隔音艙

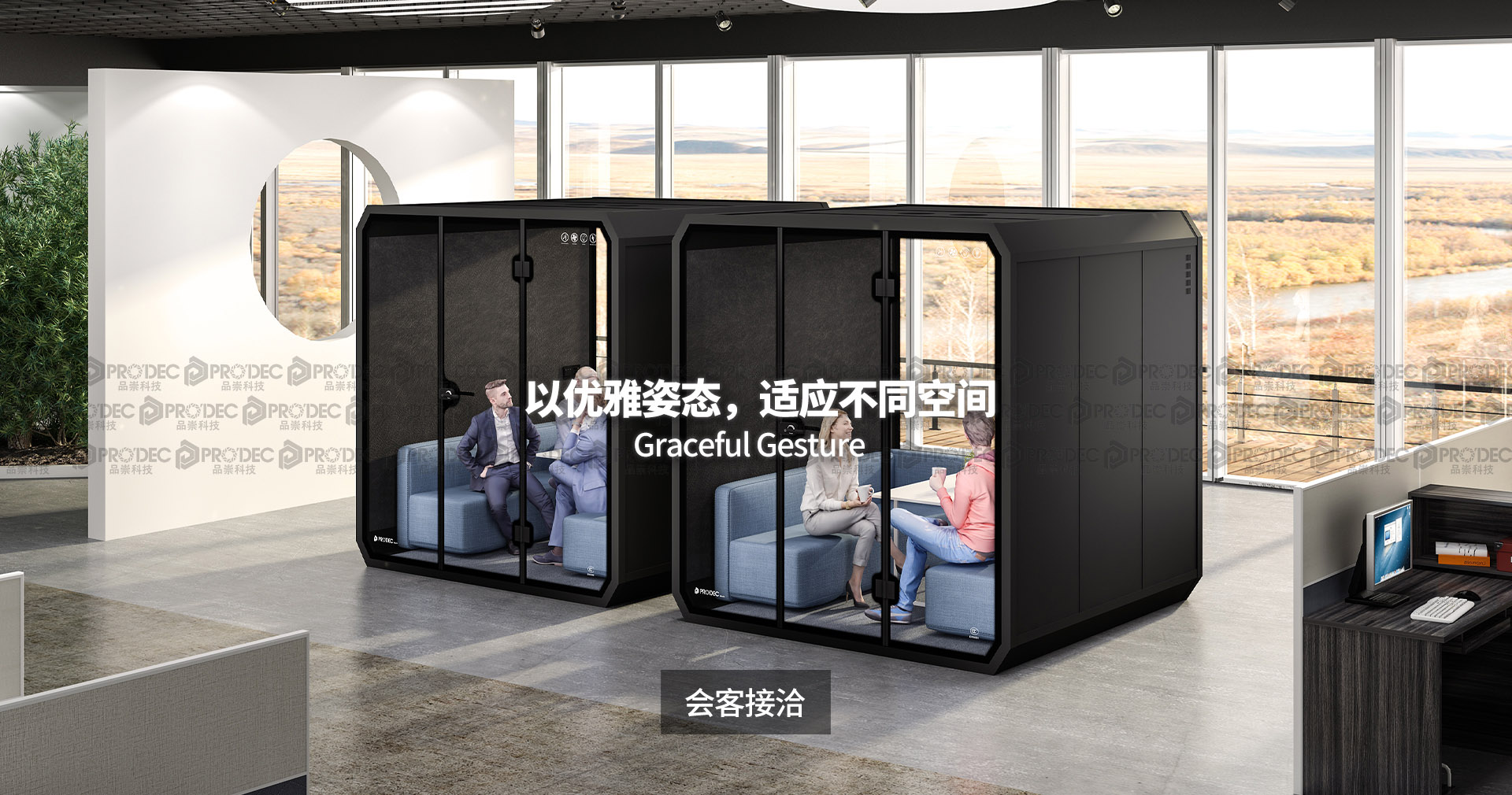

large 四人

會(huì )議接洽靜音艙

Middle 雙人

臨時辦公艙

Small 單人

辦公區域電話亭

隔音艙配色

COLOR SELECTION

新風Ventilation Fan

多重聲障式的設計解決漏音問題的同時，大大降低了新風系統的噪音，減少了艙室內外的聲交互，每三分鐘便可完全更新一次艙內空氣。

The air in the booth can be circulated in three minutes, to ensure it won't be stuffy in the booth.

隔聲玻璃Sound insulation tempered glass

隔音艙采用列車式的隔音鋼化玻璃，符合隔音要求的同時，滿足安裝和使用的安全性和穩定性。

Our booth adopts train type sound insulation tempered glass, which meets the requirements of sound insulation and meets the safety and stability of installation and use.

尼龍地毯Nylon Carpet

我們采用定制尺寸的尼龍地毯，每個艙體只需一塊地毯滿鋪。嵌入式的安裝方式保證艙內地面的水平，不易滑動。同時，尼龍地毯擁有良好的吸音性能，滿足我們對聲學設計的要求。

We use custom-made nylon carpet, which only needs one piece of carpet for a booth. The embedded installation method ensures the level of the booth floor and is not easy to slide. At the same time, nylon carpet has good sound absorption performance, which can meets our requirements for acoustic

電源220V Power

適配100-240V/50-60Hz和12VーUSB電源供應系統，符合艙內外主流設備器材和能源環境使用。三控開關分別控制一個照明燈及兩個排氣扇。

Our booth is equipped with 12V-USB power supply and power rated
for100-240V/50-60HZ, complying
with common equipment
requirements. The three control
switches control one lamp and two
exhaust fans respectively.

照明Lighting

艙室4000K自然光色溫LED中央照明系統，標配150LX光照滿足常態使用需求，專業光照要求艙內預置可擴充電源。

Equipped with 4000K daylight color temperature LED lighting system150LX), it would satisfy the needs of normal activities.

In the event of additional power requirements, a backup power supply is readily installed inside the booth.

隔音Sound Insulation

隔音艙采用38mm厚的雙層鋁蜂窩板，鋁板表面貼有高密度阻尼隔音氈以達到隔音需求，內飾搭配聲學材料以到達聲環境的指標。設計值RW+Ctr35dB(±5dB)和RT0.25(±0.1s)

Our booth is made of 38mm thick double-layer aluminum honeycomb panel. Design value: Rw+Ctr 35db(+5db)and RT0.25s(+0.1s).

魔術貼裝Hook and Loop Fasteners

魔術貼綁帶應用于聲學材料背面的安裝，環保、無味依據
《進出口染色紡織品和皮革制品中禁用偶氮染料的檢驗方法》
標準進行檢測，符合歐洲ROHS標準。穩固、快捷的安裝便于后期的循環利用。

Magic tape band is used for the back side installation of acoustic materials. It is environmentally
friendly and odourless, comply with European ROHS standard
